EN 50182

EN 50182

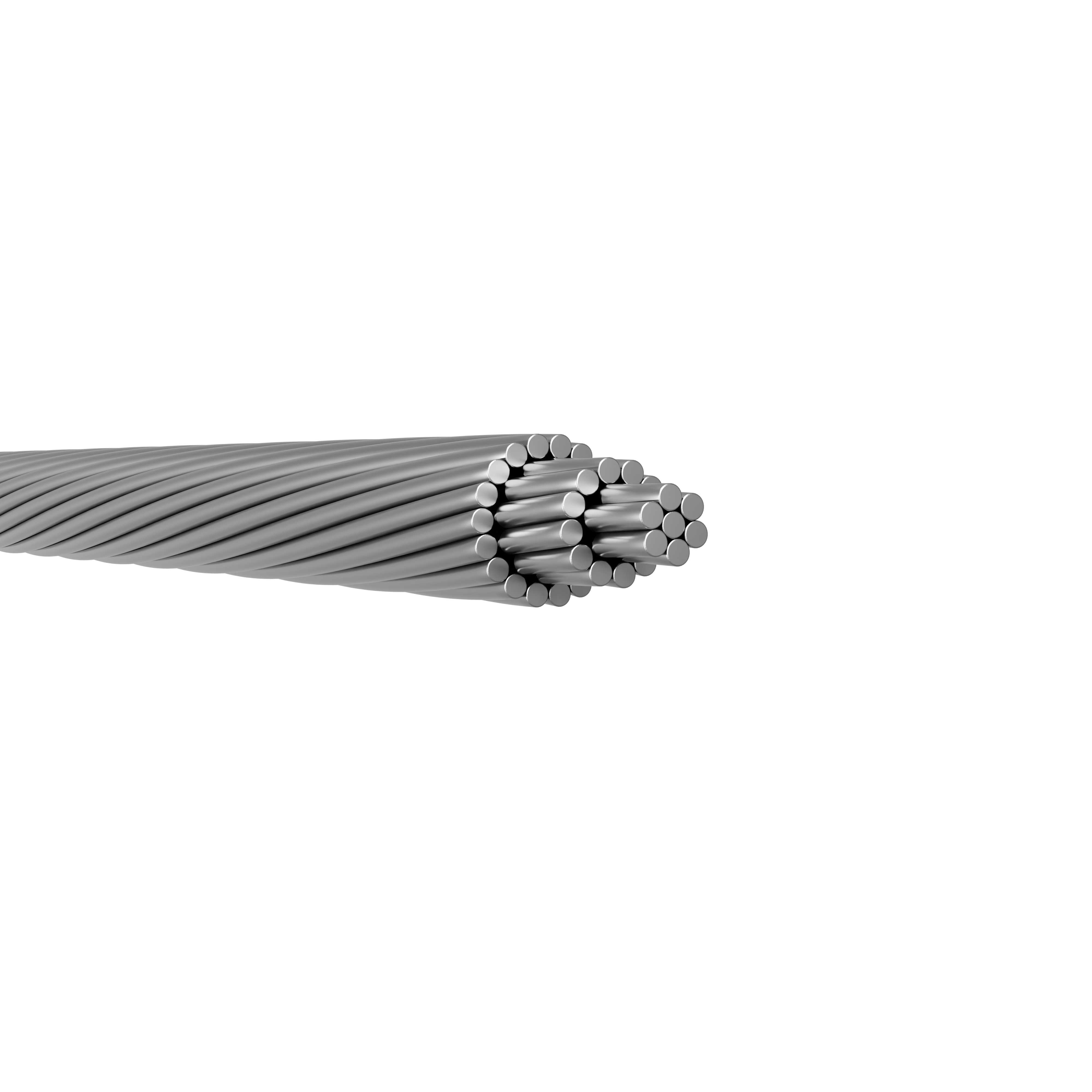

Standart: ACSR ALUMINUM CONDUCTOR STEEL REINFORCED ACSR

Type AL1/ST1A
Code	New Code	Areas			No Of Wires		Wire Diameter		Diameter		Per Unit Lenght	Rated Strength	DC Resistance
		Aluminium	Steel	Total	No Of Wires		Aluminium	Steel	Core	Cond.	Per Unit Lenght	Rated Strength	DC Resistance
		mm2	mm2	mm2	Al	Steel	mm	mm	mm	mm	kg/km	kN	Ω/km
34-AL1/6-ST1A	ACSR 34/6 SPARROW	33,8	5,64	39,5	6	1	2,68	2,68	2,68	8,04	136,6	12,18	0,8467
54-AL1/9-ST1A	ACSR 54/9 RAVEN	53,5	8,92	62,4	6	1	3,37	3,37	3,37	10,11	216,1	18,64	0,5355
85-AL1/14-ST1A	ACSR 85/14 PIGEON	85,1	14,2	99,3	6	1	4,25	4,25	4,25	12,75	343,6	29,22	0,3367
106-AL1/25-ST1A	ACSR 106/25 SUURSAVO	105,9	24,7	130,6	30	7	2,12	2,12	6,36	14,84	485,9	47,97	0,2729
152-AL1/25-ST1A	ACSR 152/25 OSTRICH	152,2	24,7	176,9	26	7	2,73	2,12	6,36	17,28	613,6	54,78	0,1898
305-AL1/39-ST1A	ACSR 305/39 DUCK	304,6	39,5	344,1	54	7	2,68	2,68	8,04	24,12	1151,2	96,80	0,0949

565-AL1/72-ST1A	ACSR 565/72 FINCH	565,0	71,6	636,6	54	19	3,65	2,19	10,95	32,85	2123,0	174,14	0,0512
42-AL1/25-ST1A	ACSR 42/25 SAVO	42,4	24,7	67,1	12	7	2,12	2,12	6,36	10,60	310,2	36,53	0,6817
89-AL1/52-ST1A	ACSR 89/52 DOTTEREL	89,4	52,2	141,6	12	7	3,08	3,08	9,24	15,40	654,8	72,12	0,3230
93-AL1/39-ST1A	ACSR 93/39 IMATRA	92,9	39,5	132,4	10	7	3,44	2,68	8,04	14,92	565,1	60,35	0,3102
148-AL1/67-ST1A	ACSR 148/68 KUOPIO	148,3	67,1	215,3	42	19	2,12	2,12	10,60	19,08	937,3	105,16	0,1955

Type AL2/ST1A
Code	New Code	Areas			No Of Wires		Wire Diameter		Diameter		Per Unit Lenght	Rated Strength	DC Resistance
		Aluminium	Steel	Total	No Of Wires		Aluminium	Steel	Core	Cond.	Per Unit Lenght	Rated Strength	DC Resistance
		mm2	mm2	mm2	Al	Steel	mm	mm	mm	mm	kg/km	kN	Ω/km
106-AL2/25-ST1A	AACSR 106/25	105,9	24,7	130,6	30	7	2,12	2,12	6,36	14,8	485,6	63,33	0,3171
