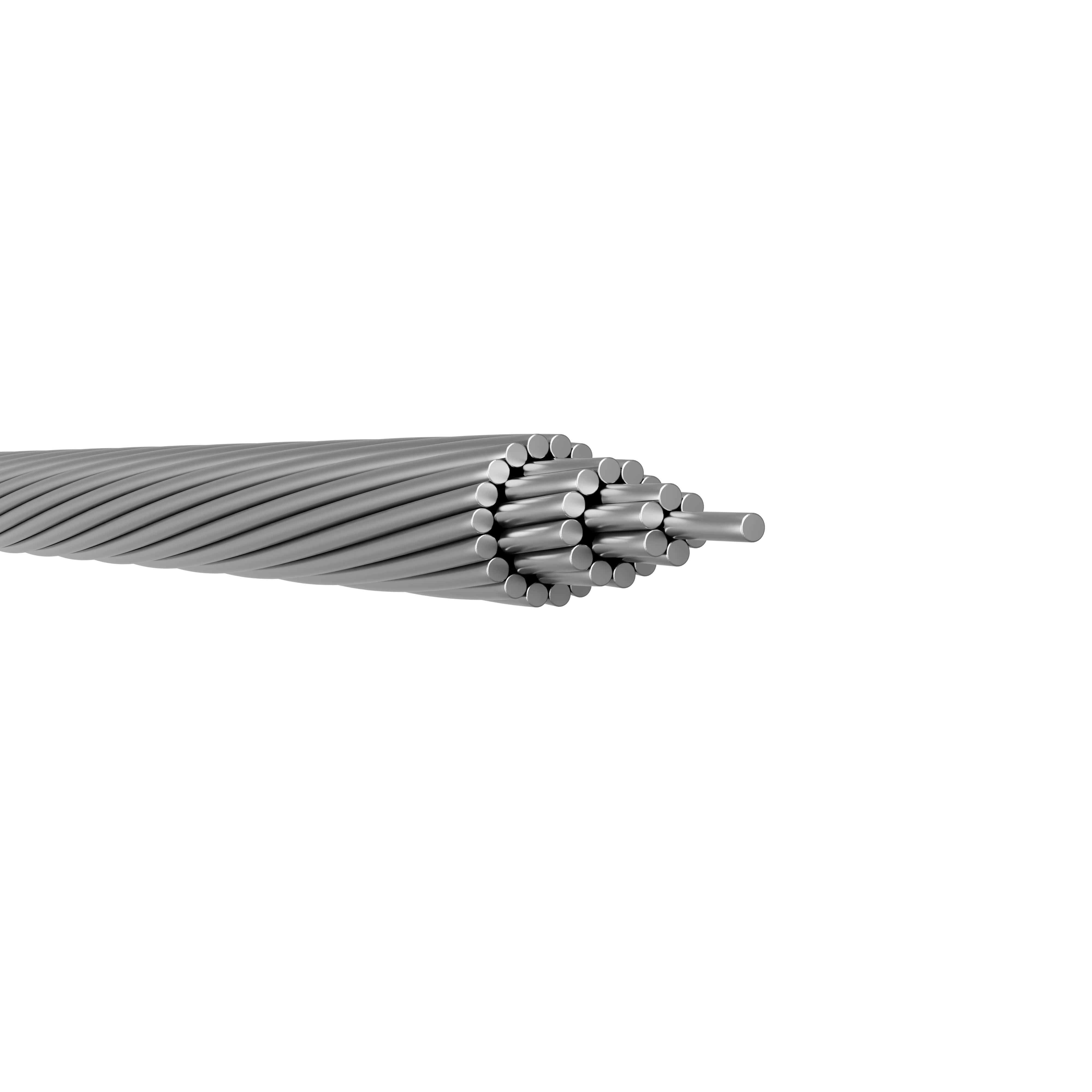

EN 50182 (NEW CODE) + BS 215 PART2 (OLD CODE)
Standart: ACSR ALUMINUM CONDUCTOR STEEL REINFORCED
| Code | New Code | Crossectinal Area | No Of Wires | Wire Diameter | Diameter | Mass per unit lenght | Rated Strength | DC resistance | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Aluminium | Steel | Total | Aluminium | Steel | Core | Cond. | ||||||||||
| mm2 | mm2 | mm2 | Al | Steel | mm | mm | mm | mm | kg/km | kN | Ω/km | |||||
| Mole | 11-AL1/2 ST1 A | 10.6 | 1.77 | 12.4 | 6 | 1 | 1.5 | 1.5 | 1.5 | 4.5 | 42.8 | 4.14 | 2.7027 | |||
| Squirrel | 21-AL1/3 ST1 A | 21. | 3.5 | 24.5 | 6 | 1 | 2.11 | 2.11 | 2.11 | 6.33 | 84.7 | 7.87 | 1.3659 | |||
| Gopher | 26-AL1/4 ST1 A | 26.2 | 4.37 | 30.6 | 6 | 1 | 2.36 | 2.36 | 2.36 | 7.08 | 106. | 9.58 | 1.0919 | |||
| Weasel | 32-AL1/5 ST1 A | 31.6 | 5.27 | 36.9 | 6 | 1 | 2.59 | 2.59 | 2.59 | 7.77 | 127.6 | 11.38 | 0.9065 | |||
| Fox | 37-AL1/6 ST1 A | 36.7 | 6.11 | 42.8 | 6 | 1 | 2.79 | 2.79 | 2.79 | 8.37 | 148.1 | 13.21 | 0.7812 | |||
| Ferret | 42-AL1/7 ST1 A | 42.4 | 7.07 | 49.5 | 6 | 1 | 3. | 3. | 3. | 9. | 171.2 | 15.27 | 0.6757 | |||
| Rabbit | 53-AL1/9 ST1 A | 52.9 | 8.81 | 61.7 | 6 | 1 | 3.35 | 3.35 | 3.35 | 10.1 | 213.5 | 18.42 | 0.5419 | |||
| Mink | 63-AL1/11 ST1 A | 63.1 | 10.5 | 73.6 | 6 | 1 | 3.66 | 3.66 | 3.66 | 11. | 254.9 | 21.67 | 0.4540 | |||
| Skunk | 63-AL1/37 ST1 A | 63.2 | 36.9 | 100.1 | 12 | 7 | 2.59 | 2.59 | 7.77 | 13. | 463. | 52.79 | 0.4568 | |||
| Beaver | 75-AL1/13 ST1 A | 75. | 12.5 | 87.5 | 6 | 1 | 3.99 | 3.99 | 3.99 | 12. | 302.9 | 25.76 | 0.3820 | |||
| Horse | 73-AL1/43 ST1 A | 73.4 | 42.8 | 116.2 | 12 | 7 | 2.79 | 2.79 | 8.37 | 14. | 537.3 | 61.26 | 0.3936 | |||
| Raccon | 79-AL1/13 ST1 A | 78.8 | 13.1 | 92. | 6 | 1 | 4.09 | 4.09 | 4.09 | 12.3 | 318.3 | 27.06 | 0.3635 | |||
| Otter | 84-AL1/14 ST1 A | 83.9 | 14. | 97.9 | 6 | 1 | 4.22 | 4.22 | 4.22 | 12.7 | 338.8 | 28.81 | 0.3415 | |||
| Cat | 95-AL1/16 ST1 A | 95.4 | 15.9 | 111.3 | 6 | 1 | 4.5 | 4.5 | 4.5 | 13.5 | 385.3 | 32.76 | 0.3003 | |||
| Hare | 105-AL1/17 ST1 A | 105. | 17.5 | 122.5 | 6 | 1 | 4.72 | 4.72 | 4.72 | 14.2 | 423.8 | 36.04 | 0.2730 | |||
| Dog | 105-AL1/14 ST1 A | 105. | 13.6 | 118.5 | 6 | 7 | 1.57 | 1.57 | 4.71 | 14.2 | 394. | 32.65 | 0.2733 | |||
| Coyote | 132-AL1/20 ST1 A | 131.7 | 20.1 | 151.8 | 26 | 7 | 1.91 | 1.91 | 5.73 | 15.9 | 520.7 | 45.86 | 0.2192 | |||
| Cougar | 132-AL1/17 ST1 A | 131.5 | 7.31 | 138.8 | 18 | 1 | 3.05 | 3.05 | 3.05 | 15.3 | 418.8 | 29.74 | 0.2188 | |||
| Tiger | 131-AL1/31 ST1 A | 131.2 | 30.6 | 161.9 | 30 | 7 | 2.36 | 2.36 | 7.08 | 16.5 | 602.2 | 57.87 | 0.2202 | |||
| Wolf | 158-AL1/37 ST1 A | 158.1 | 36.9 | 194.9 | 30 | 7 | 2.59 | 2.59 | 7.77 | 18.1 | 725.3 | 68.91 | 0.1829 | |||
| Dingo | 159-AL1/9 ST1 A | 158.7 | 8.81 | 167.5 | 18 | 1 | 3.35 | 3.35 | 3.35 | 16.8 | 505.2 | 35.87 | 0.1814 | |||
| Lynx | 183-AL1/43 ST1 A | 183.4 | 42.8 | 226.2 | 30 | 7 | 2.79 | 2.79 | 8.37 | 19.5 | 841.6 | 79.97 | 0.1576 | |||
| Caracal | 184-AL1/10 ST1 A | 184.2 | 10.2 | 194.5 | 18 | 1 | 3.61 | 3.61 | 3.61 | 18.1 | 586.7 | 40.74 | 0.1562 | |||
| Panther | 212-AL1/49 ST1 A | 212.1 | 49.5 | 261.5 | 30 | 7 | 3. | 3. | 9. | 21. | 973.1 | 92.46 | 0.1363 | |||
| Jaguar | 211-AL1/12 ST1 A | 210.6 | 11.7 | 222.3 | 18 | 1 | 3.86 | 3.86 | 3.86 | 19.3 | 670.8 | 46.57 | 0.1366 | |||
| Lion | 238-AL1/56 ST1 A | 238.3 | 55.6 | 293.9 | 30 | 7 | 3.18 | 3.18 | 9.54 | 22.3 | 1093.4 | 100.47 | 0.1213 | |||
| Bear | 264-AL1/62 ST1 A | 264.4 | 61.7 | 326.1 | 30 | 7 | 3.35 | 3.35 | 10.1 | 23.5 | 1213.4 | 111.5 | 0.1093 | |||
| Goat | 324-AL1/76 ST1 A | 324.3 | 75.7 | 400. | 30 | 7 | 3.71 | 3.71 | 11.1 | 26. | 1488.2 | 135.13 | 0.0891 | |||
| Sheep | 375-AL1/88 ST1 A | 375.1 | 87.5 | 462.6 | 30 | 7 | 3.99 | 3.99 | 12. | 27.9 | 1721.3 | 156.3 | 0.0771 | |||
| Antelope | 374-AL1/48 ST1 A | 374.1 | 48.5 | 422.6 | 54 | 7 | 2.97 | 2.97 | 8.91 | 26.7 | 1413.8 | 118.88 | 0.0773 | |||
| Bison | 382-AL1/49 ST1 A | 381.7 | 49.5 | 431.2 | 54 | 7 | 3. | 3. | 9. | 27. | 1442.5 | 121.3 | 0.0758 | |||
| Deer | 430-AL1/100 ST1 A | 429.6 | 100.2 | 529.8 | 30 | 7 | 4.27 | 4.27 | 12.8 | 29.9 | 1971.4 | 179. | 0.0673 | |||
| Zebra | 429-AL1/56 ST1 A | 428.9 | 55.6 | 484.5 | 54 | 7 | 3.18 | 3.18 | 9.54 | 28.6 | 1620.8 | 131.92 | 0.0674 | |||
| Elk | 477-AL1/111 ST1 A | 477.1 | 111.3 | 588.5 | 30 | 7 | 4.5 | 4.5 | 13.5 | 31.5 | 2189.5 | 198.8 | 0.0606 | |||
| Camel | 476-AL1/62 ST1 A | 476. | 61.7 | 537.7 | 54 | 7 | 3.35 | 3.35 | 10.1 | 30.2 | 1798.8 | 146.4 | 0.0608 | |||
| Moose | 528-AL1/69-ST1 A | 528.5 | 68.5 | 597. | 54 | 7 | 3.53 | 3.53 | 10.6 | 31.8 | 1997.3 | 159.92 | 0.0547 | |||
