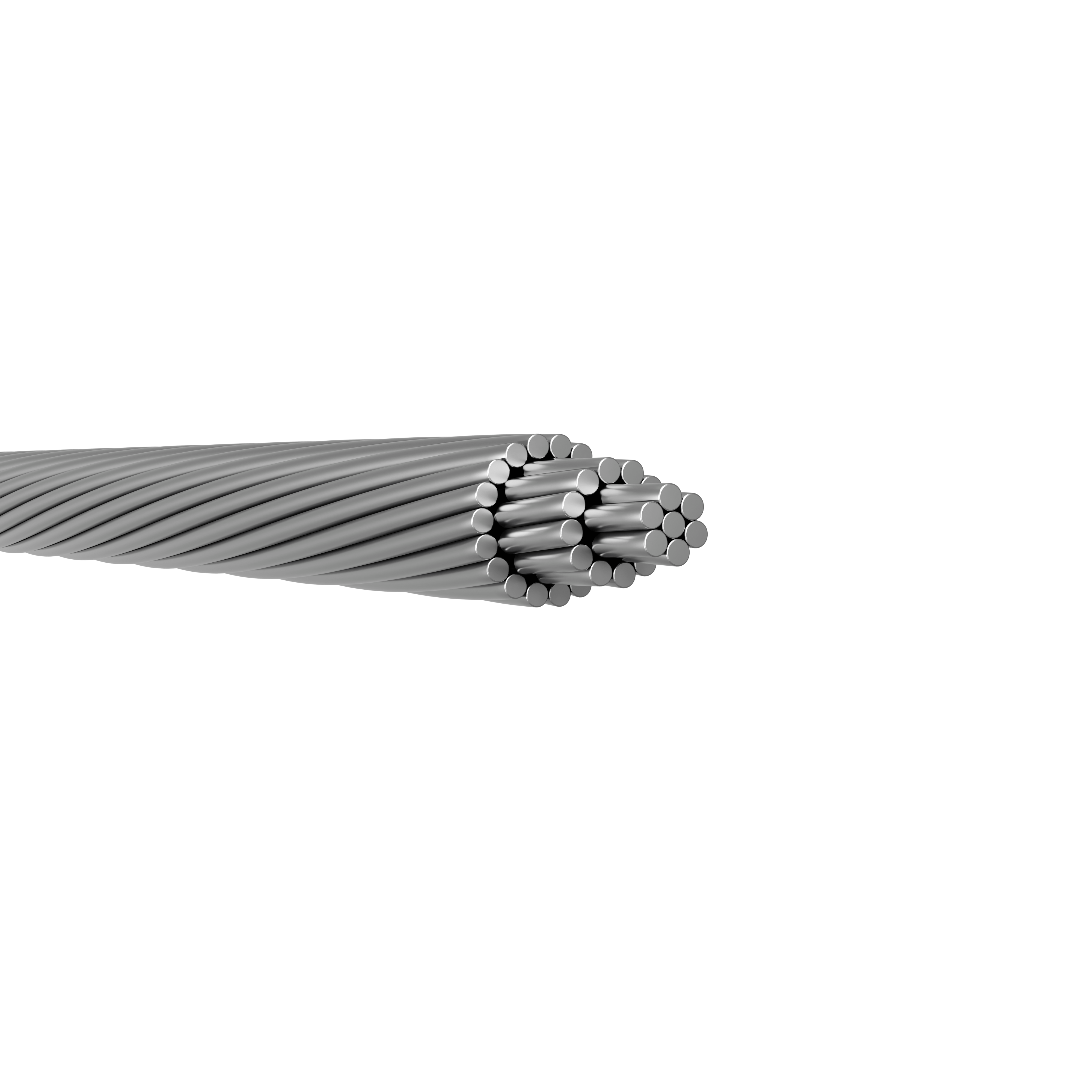

EN 50182 (NEW CODE) + DIN 48204 (OLD CODE)
Standart: ACSR ALUMINUM CONDUCTOR STEEL REINFORCED
| Code | New Code | Crossectinal Area | No Of Wires | Wire Diameter | Diameter | Mass per unit lenght | Rated Strength | DC resistance | Final modulus of elasticity | Coffcient of lineer expanssion | Current Carrying Capacity | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Aluminium | Steel | Total | Aluminium | Steel | Core | Cond. | ||||||||||
| mm2 | mm2 | mm2 | Al | Steel | mm | mm | mm | mm | kg/km | kN | Ω/km | N/mm2 | 1/K | A | ||
| 16/2,5 | 15-AL1/3-ST1 A | 15,3 | 2,54 | 17,8 | 6 | 1 | 1,80 | 1,80 | 1,80 | 5,40 | 61,60 | 5,80 | 1,876 9 | 81,000 | 1,92E-5 | 105 |
| 25/4 | 24-AL1/4-ST1 A | 23,9 | 3,98 | 27,8 | 6 | 1 | 2,25 | 2,25 | 2,25 | 6,75 | 96,30 | 8,95 | 1,201 2 | 81,000 | 1,92E-5 | 140 |
| 35/6 | 34-AL1/6-ST1 A | 34,4 | 5,73 | 40,1 | 6 | 1 | 2,70 | 2,70 | 2,70 | 8,10 | 138,70 | 12,37 | 0,834 2 | 81,000 | 1,92E-5 | 170 |
| 44/32 | 44-AL1/32-ST1 A | 44 | 31,7 | 75,6 | 14 | 7 | 2,40 | 2,40 | 2,40 | 11,20 | 369,30 | 44,24 | 0,657 4 | 110,000 | 1,50E-5 | - |
| 50/8 | 48-AL1/8-ST1 A | 48,3 | 8,04 | 56,3 | 6 | 1 | 3,20 | 3,20 | 3,20 | 9,60 | 194,80 | 16,81 | 0,593 3 | 81,000 | 1,92E-5 | 210 |
| 50/30 | 51-AL1/30-ST1 A | 51,2 | 29,8 | 81,0 | 12 | 7 | 6,99 | 2,33 | 6,99 | 11,70 | 374,70 | 42,98 | 0,564 4 | 107,000 | 1,53E-5 | - |
| 70/12 | 70-AL1/11-ST1 A | 69,9 | 11,4 | 81,3 | 26 | 7 | 4,32 | 1,44 | 4,32 | 11,70 | 282,20 | 26,27 | 0,413 2 | 77,000 | 1,89E-5 | 290 |
| 95/15 | 94-AL1/15-ST1 A | 94,4 | 15,3 | 109,7 | 26 | 7 | 5,01 | 1,67 | 5,01 | 13,60 | 380,60 | 34,93 | 0,306 0 | 77,000 | 1,89E-5 | 350 |
| 95/55 | 97-AL1/56-ST1 A | 96,5 | 56,3 | 152,8 | 12 | 7 | 9,60 | 3,20 | 9,60 | 16,00 | 706,80 | 77,85 | 0,299 2 | 107,000 | 1,53E-5 | - |
| 105/75 | 106-AL1/76-ST1 A | 105,7 | 75,5 | 181,2 | 14 | 19 | 11,30 | 2,25 | 11,30 | 17,50 | 885,30 | 105,82 | 0,274 2 | 110,000 | 1,50E-5 | - |
| 120/20 | 122-AL1/20-ST1 A | 121,6 | 19,8 | 141,4 | 26 | 7 | 5,70 | 1,90 | 5,70 | 15,50 | 491,00 | 44,50 | 0,237 6 | 77,000 | 1,89E-5 | 410 |
| 120/70 | 122-AL1/71-ST1 A | 122,1 | 71,3 | 193,4 | 12 | 7 | 10,80 | 3,60 | 10,80 | 18,00 | 894,50 | 97,92 | 0,236 4 | 107,000 | 1,53E-5 | - |
| 125/30 | 128-AL1/30-ST1 A | 127,9 | 29,8 | 157,8 | 30 | 7 | 6,99 | 2,33 | 6,99 | 16,30 | 587,00 | 56,41 | 0,226 0 | 82,000 | 1,78E-5 | 425 |
| 150/25 | 149-AL1/24-ST1 A | 148,9 | 24,2 | 173,1 | 26 | 7 | 6,30 | 2,10 | 6,30 | 17,10 | 600,80 | 53,67 | 0,194 0 | 77,000 | 1,89E-5 | 470 |
| 170/40 | 172-AL1/40-ST1 A | 171,8 | 40,1 | 211,8 | 30 | 7 | 8,10 | 2,70 | 8,10 | 18,90 | 788,20 | 74,89 | 0,168 3 | 82,000 | 1,78E-5 | 520 |
| 185/30 | 184-AL1/30-ST1 A | 183,8 | 29,8 | 213,6 | 26 | 7 | 6,99 | 2,33 | 6,99 | 19,00 | 741,00 | 65,20 | 0,157 1 | 77,000 | 1,89E-5 | 535 |
| 210/35 | 209-AL1/34-ST1 A | 209,1 | 34,1 | 243,2 | 26 | 7 | 7,47 | 2,49 | 7,47 | 20,30 | 844,10 | 73,36 | 0,138 1 | 77,000 | 1,89E-5 | 590 |
| 210/50 | 212-AL1/49-ST1 A | 212,1 | 49,5 | 261,5 | 30 | 7 | 9,00 | 3,00 | 9,00 | 21,00 | 973,10 | 92,46 | 0,136 3 | 82,000 | 1,78E-5 | 610 |
| 230/30 | 231-AL1/30-ST1 A | 230,9 | 29,8 | 260,8 | 24 | 7 | 6,99 | 2,33 | 6,99 | 21,00 | 870,90 | 72,13 | 0,125 0 | 74,000 | 1,96E-5 | 630 |
| 240/40 | 243-AL1/39-ST1 A | 243,1 | 39,5 | 282,5 | 26 | 7 | 8,04 | 2,68 | 8,04 | 21,80 | 980,10 | 85,12 | 0,118 8 | 77,000 | 1,89E-5 | 645 |
| 265/35 | 264-AL1/34-ST1 A | 263,7 | 34,1 | 297,7 | 24 | 7 | 7,47 | 2,49 | 7,47 | 22,40 | 994,40 | 81,04 | 0,109 5 | 74,000 | 1,96E-5 | 680 |
| 300/50 | 304-AL1/49-ST1 A | 304,3 | 49,5 | 353,7 | 26 | 7 | 9,00 | 3,00 | 9,00 | 24,40 | 1227,30 | 105,09 | 0,094 9 | 77,000 | 1,89E-5 | 740 |
| 305/40 | 305-AL1/39-ST1 A | 304,6 | 39,5 | 344,1 | 54 | 7 | 8,04 | 2,68 | 8,04 | 24,10 | 1151,20 | 96,80 | 0,094 9 | 70,000 | 1,93E-5 | 740 |
| 340/30 | 339-AL1/30-ST1 A | 339,3 | 29,8 | 369,1 | 48 | 7 | 6,99 | 2,33 | 6,99 | 25,00 | 1171,20 | 91,71 | 0,085 2 | 62,000 | 2,05E-5 | 790 |
| 380/50 | 382-AL1/49-ST1 A | 381,7 | 49,5 | 431,2 | 54 | 7 | 9,00 | 3,00 | 9,00 | 27,00 | 1442,50 | 121,30 | 0,075 8 | 70,000 | 1,93E-5 | 840 |
| 385/35 | 386-AL1/34-ST1 A | 386 | 34,1 | 420,1 | 48 | 7 | 7,47 | 2,49 | 7,47 | 26,70 | 1333,60 | 102,56 | 0,074 9 | 62,000 | 2,05E-5 | 850 |
| 435/55 | 434-AL1/56-ST1 A | 434,3 | 56,3 | 490,6 | 54 | 7 | 9,60 | 3,20 | 9,60 | 28,00 | 1641,30 | 133,59 | 0,066 6 | 70,000 | 1,93E-5 | 900 |
| 450/40 | 449-AL1/39-ST1 A | 448,7 | 39,5 | 488,2 | 48 | 7 | 8,04 | 2,68 | 8,04 | 28,70 | 1549,10 | 119,05 | 0,064 4 | 62,000 | 2,05E-5 | 920 |
| 490/65 | 490-AL1/64-ST1 A | 490,3 | 63,6 | 553,8 | 54 | 7 | 10,20 | 3,40 | 10,20 | 30,60 | 1852,90 | 150,81 | 0,059 0 | 70,000 | 1,93E-5 | 960 |
| 495/35 | 494-AL1/34-ST1 A | 494,4 | 34,1 | 528,4 | 45 | 7 | 7,47 | 2,49 | 7,47 | 29,90 | 1632,60 | 117,96 | 0,058 4 | 61,000 | 2,09E-5 | 985 |
| 510/45 | 511-AL1/45-ST1 A | 515,1 | 45,3 | 558,8 | 48 | 7 | 8,61 | 2,87 | 8,61 | 30,70 | 1765,30 | 133,31 | 0,056 6 | 62,000 | 2,05E-5 | 995 |
| 550/70 | 550-AL1/71-ST1 A | 549,7 | 71,3 | 620,9 | 54 | 7 | 10,80 | 3,60 | 10,80 | 32,40 | 2077,20 | 166,32 | 0,052 6 | 70,000 | 1,93E-5 | 1020 |
| 560/50 | 562-AL1/49-ST1 A | 561,7 | 49,5 | 611,2 | 48 | 7 | 9,00 | 3,00 | 9,00 | 32,20 | 1939,50 | 146,28 | 0,051 5 | 62,000 | 2,05E-5 | 1040 |
| 570/40 | 571-AL1/39-ST1 A | 571,2 | 39,5 | 610,6 | 45 | 7 | 8,04 | 2,68 | 8,04 | 32,20 | 1887,10 | 136,40 | 0,050 6 | 61,000 | 2,09E-5 | 1050 |
| 650/45 | 653-AL1/45-ST1 A | 653,5 | 45,3 | 698,8 | 45 | 7 | 8,61 | 2,87 | 8,61 | 34,40 | 2159,90 | 156,18 | 0,044 2 | 61,000 | 2,09E-5 | 1120 |
| 680/85 | 679-AL1/86-ST1 A | 678,6 | 86,0 | 764,5 | 54 | 19 | 12,00 | 2,40 | 12,00 | 36,00 | 2549,70 | 206,56 | 0,042 6 | 68,000 | 1,94E-5 | 1150 |
| 1045/45 | 1046-AL1/45-ST1 A | 1045,6 | 45,3 | 1090,9 | 72 | 7 | 8,61 | 2,87 | 8,61 | 43,00 | 3248,20 | 218,92 | 0,027 7 | 60,000 | 2,17E-5 | 1580 |
